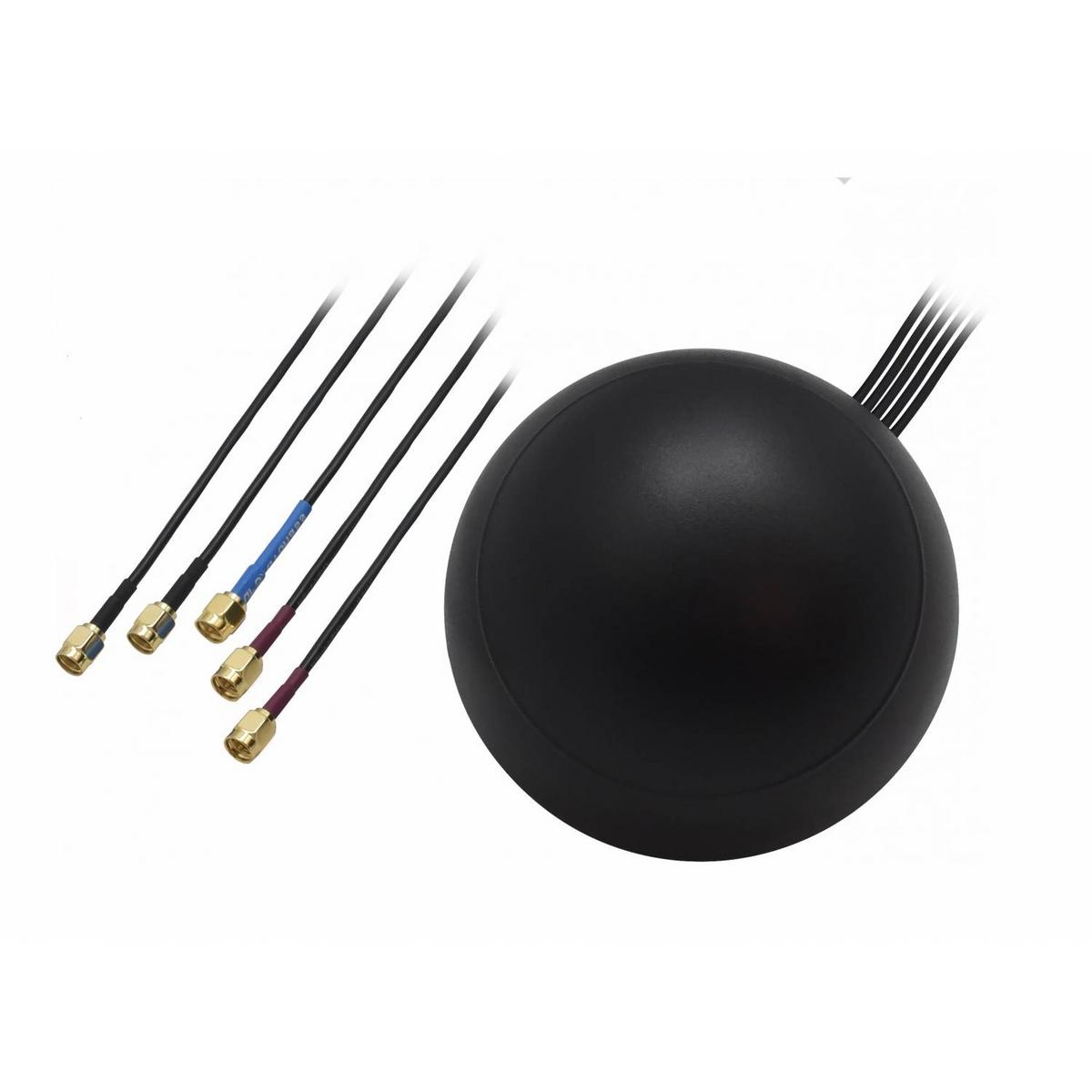

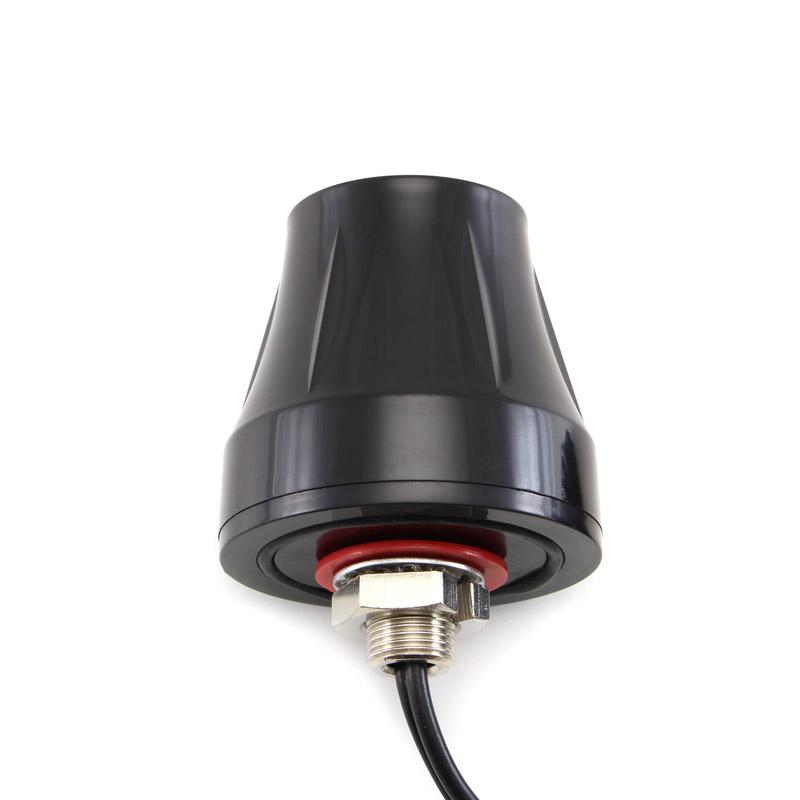

One antenna for LTE/UMTS and GPS. Water proof IP67-class combo antenna for LTE/UMTS/GSM, GPS. Body mount, two separate 3m cables for cellular, and GPS connections. High gain: LTE/UMTS: 3 dBi, GPS/LNA 28 dB (Supply voltage 2.2-5V DC).Antenna Frequency GSM 850/900/1800/1900UMTS 2100LTE 699-960/1710-2690GPS 1575.42Active GPSMounting method: ScrewGain: 3dBiVSWR: 2:1Connector Type: SMA-MaleDiameter: 50 mmHeight: 48.5 mmImpedance: 50 OhmCable length: 300 cmCable Specification: RG174Polarization: Linear, RHCP (GPS)IP Class: IP67Operating Temperature Range: -30 °C – 80 °C ItemSpecificationsGPS AntennaDielectricAntennaCenter Frequency1575.42±1MHzBand WidthCF±5MHzPolarizationRHCPGain5dBic（Zenith）V.S.W.R＜1.5Impendance50ΩAxial Ratio3dB（max）LNAGain28±2dBNoise Figure＜1.5Ex-band Attenuation12dB@CF+50MHz/16dB@CF-50MHzV.S.W.R＜2.0Supply Voltage2.2~5V DCCurrent Consumption5~15mAGSM AntennaFrequency Range824~960MHz/1710~2170MHzV.S.W.R＜2.0PolarizationLinearGain2.0dBiImpendance50ΩMechanical CableRG174ConnectorSMA/MCX/FAKRA or othersMaterialABSMounting MethodScrewEnvironmentalOperating Temperature -40℃~+85℃ Relative HumidityUp to 95%Ingress ProtectionIP67 (exclude cable outlet)Vibration10 to 55Hz with 1.5mm amplitude 2hoursEnvironmentally FriendlyROHS Compliant

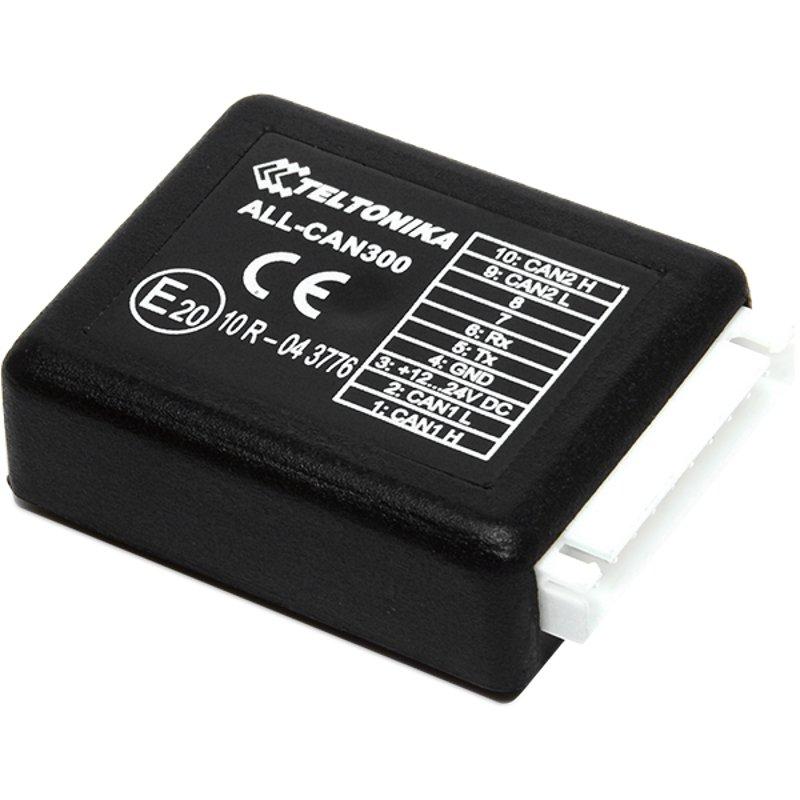

ALLCAN300 is designed to acquire CAN data from any kind of transport (light vehicles, trucks, buses, agriculture transport, special transport)FM11YX GNSS/GSM Terminal, used with ALLCAN300 Adapter, will be able to collect and send vehicle dataALLCAN300 supports more than 1500 models of vehicles Supported OnBoard computer data:*Ignition indicationVehicle mileageVehicle speedTotal fuel consumptionFuel level (Dashboard)Acceleration positionEngine temperatureEngine workingEngine lifetimeAlarmDriver’s seat beltPassenger’s seat beltParkingAirbag statusCheck engine warningLow fuel warningOil pressure / levelRear left door indicationAND MANY MORE….* - data is available depending on vehicle’s equipment, module, type and years

Teltonika FMB640 is GNSS, GSM and Blue-tooth terminal for PROFESSIONAL applications. FMB640 is designed for complex solutions, where one device can do multiple tasks. FMB640 features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-Line), remote tachograph file download, various third party RS232 or RS485 devices support and Dual-SIM will maximize your fleet efficiency.Terminal is suitable for applications like international logistics, refrigerated transport, agriculture, construction & mining, security & emergency services and even more.• RS232/RS485 – data from external devices – fulfill customer special needs• Tacho data and DDD files – remote access to tacho data – saves time and expenses• FMS/LV-CAN/ALL-CAN – CAN data from various transport – expand value for customer Dual SIM Double GSM network reliability with Dual SIM! Even if your main SIM card fails to connect, FMB640 will stay online. Moreover, Dual SIM significantly reduces roaming costs, when using first SIM card for Home, second for Roaming data networks. Bluetooth Integrated Blue-tooth 4.0 LE allows usage of various wireless sensors and grants compatibility with previously available Blue-tooth V3.0 features like device configuration, firmware update, headset support. Retrieve temperature and humidity information from Blue-tooth sensors without the need of wired connection – reduce installation costs. Make phone calls to your employee via Blue-tooth headset – be sure that your employee is always safe and uses hands free headset instead of phone! Integrated tachograph solution Integrated tachograph solution enables remote tachograph file (DDD, V1B, C1B or TGD format) download and live tachograph info acquisition without any additional adapter. Easier than ever connection – less integration time.RS232/RS485 RS232/RS485 functionality enables connection of third party devices like: multiple LLS sensors, GARMIN personal navigation device, RFID readers or some other RS232/RS485 devices.Internal batteryFeel safe when vehicle is monitored by device with internal battery. When vehicle battery isdisconnected, device still remains online and sends data to server. GNSSGNSSGPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPSProtocol compatibleNMEA, GGA, GGL, GSA, GSV, RMC, VTGReceiver33/ 99 acquisition channelTracking sensitivity-165 dBMAccuracy< 3 mHot start< 1 sWarm start< 25 sCold start< 35 sCellularTechnologyGSM/GPRS2GQuad-band 850 / 900 / 1800 / 1900 MHzGPRSGPRS Mobile Station Class BData transferGPRS Multi-Slot Class 12(up to 240 kbps)Data supportSMS (text/data)PowerInput voltage range10 - 30 V DC with overvoltage protectionBack-up battery550 mAh Ni-Mh, 8,4 V batteryPower consumptionAt 12V < 7 mA(Deep Sleep)At 12V < 12 mA(Online Deep Sleep)At 12V < 28 mA(GPS Sleep)At 12V < 65 mA(nominal)At 12V

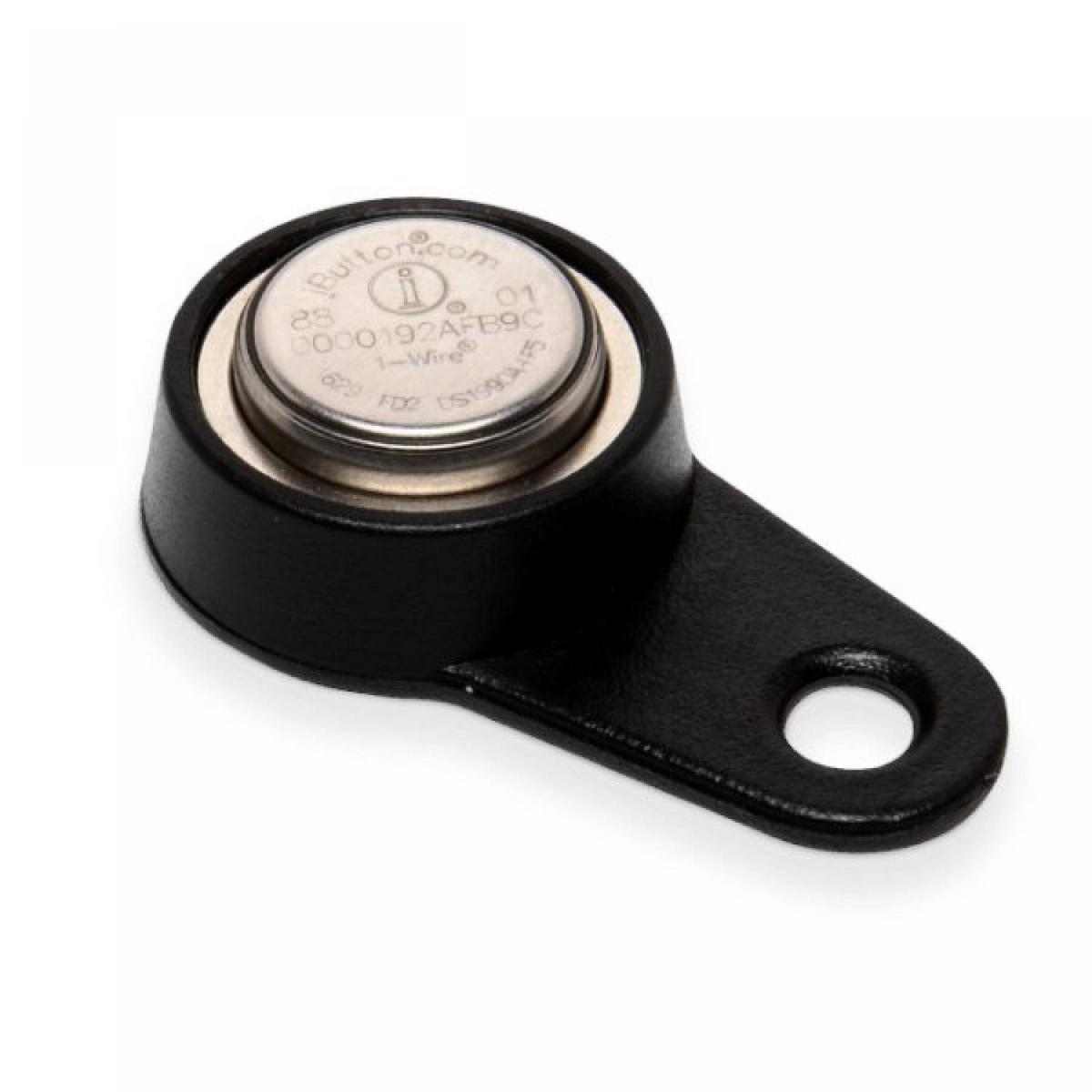

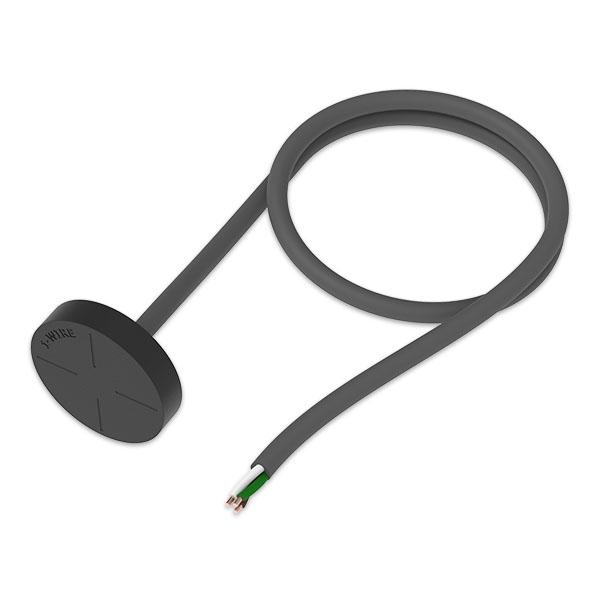

One of the implemented features for fleet management devices is 1-Wire data protocol, which enables connection of iButton. The iButton device is perfect for any application where AVL data needs to travel along with a person or object identification.iButton is a solution for fleet management tracker in following cases:Driver authorization – gives ability to use vehicle only for specific iButton owners and identify which driver is on the road.Immobilizer – without iButton authorization you can not run engine starter and and use vehicle.AutoGeofencing – gives ability to know when car leaves customized areas without iButton authorization.

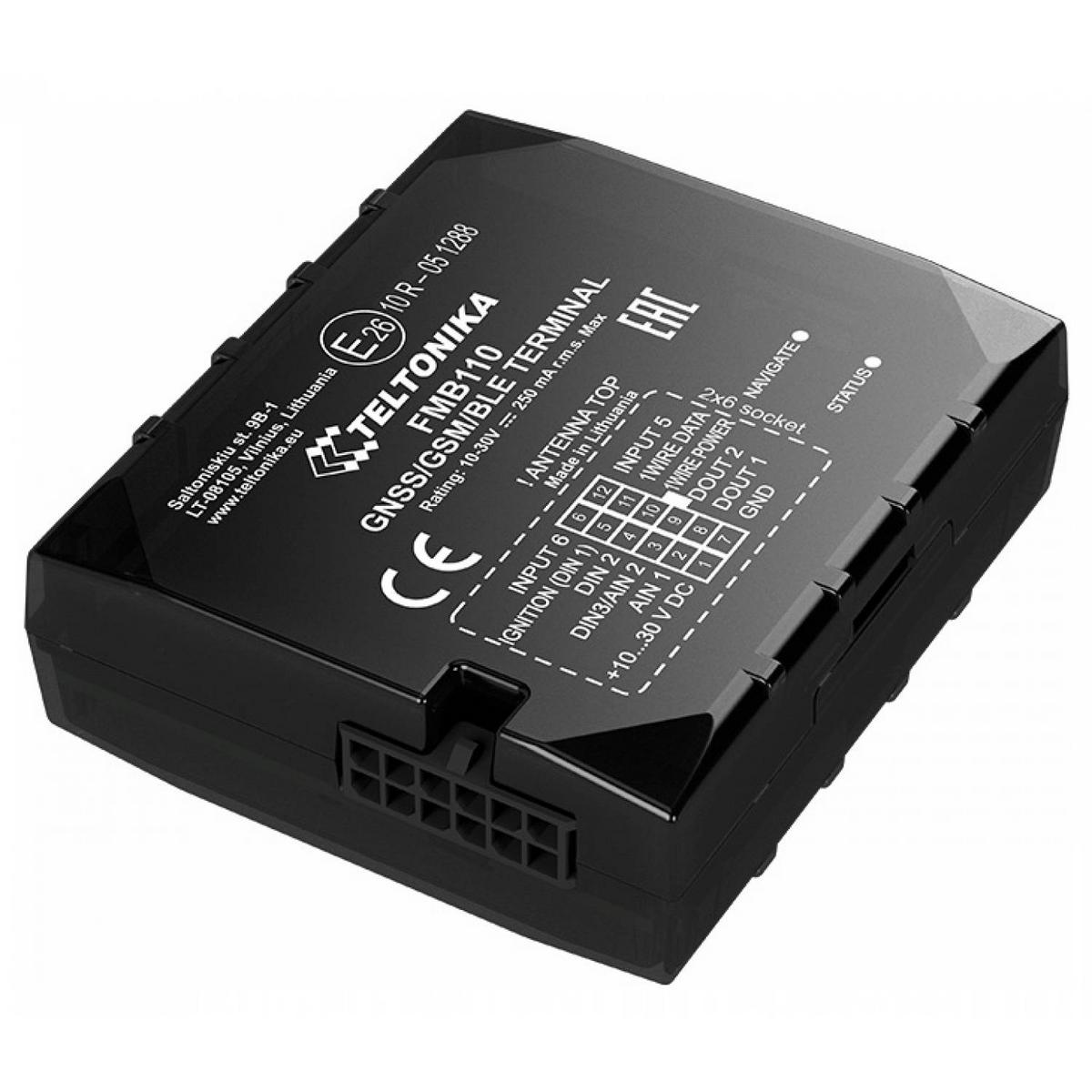

FMB110 - small and professional tracker with internal high gain GSM and GNSS antennas, which is able to collect device coordinates and other useful data and transfer them via GSM network to server. This device is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. FMB110 can perform tasks on remote objects, such as monitoring engine status, controlling truck’s door etc.Teltonika FMB110 - schema ModuleNameTM2500TechnologyGSM/GPRS/GNSS/BLUETOOTHGNSSGNSSGPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPSReceiver33 channelTracking sensitivity-165 dBMAccuracy< 3 mHot start< 1 sWarm start< 25 sCold start< 35 sCellularTechnologyGSM2G bandsQuad-band 850 / 900 / 1800 / 1900 MHzData transferGPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class BData supportSMS (text/data)PowerInput voltage range10 - 30 V DC with overvoltage protectionPower consumptionAt 12V < 5 mA (Ultra Deep Sleep)At 12V < 6 mA (Deep Sleep)At 12V < 7 mA (Online Sleep)At 12V < 17 mA (GPS Sleep)At 12V < 35 mA (nominal)BluetoothSpecification4.0 + LESupported peripheralsTemperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode ScannerInterfaceDigital Inputs3Digital Outputs2Analog Inputs2CAN Adapter inputs11-Wire1GNSS antennaInternal High GainGSM antennaInternal High GainUSB2.0 Micro-USBLED indication2 status LED lightsSIMMicro-SIM + eSIMMemory128MB internal flash memoryPhysical specificationDimensions65 x 56 x 18.9 mm (L x W x H)Weight50 gOperating environmentOperating temperature-25 °C to +55 °CStorage temperature-40 °C to +70 °COperating humidity5% to 95% non-condensingIngress Protection RatingIP41FeaturesSensorsAccelerometerScenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Towing detection, Crash detection, Auto Geofence, Manual Geofence, TripSleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep SleepConfiguration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)SMSConfiguration, Events, DOUT control, DebugGPRS commandsConfiguration, DOUT control, DebugTime SynchronizationGPS, NITZ, NTPFuel monitoringLLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, ODBII dongleIgnition detectionDigital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)Certification & ApprovalsRegulatoryCE/RED, E-Mark, EAC, RoHS, REACH

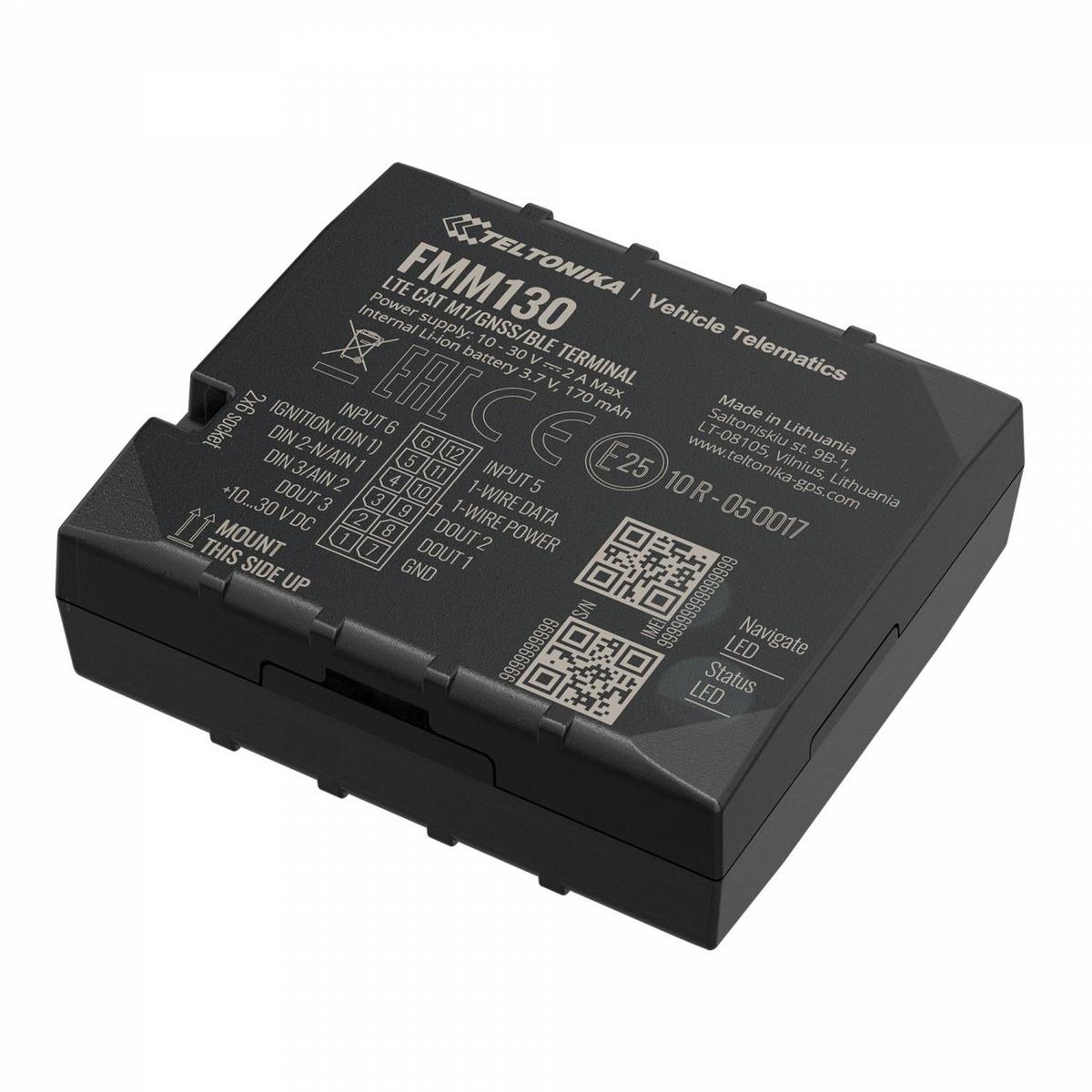

FMM130Advanced CAT M1/GSM/GNSS/BLE terminal with internal antennas and backup battery.FMM130 is small and professional real-time tracking terminal with GNSS and LTE CAT-M1/NB-IoT/GSM connectivity and backup battery. Device equipped with GNSS/Bluetooth and LTE CAT-M1/NB-IoT modules with fallback to 2G network, internal GNSS and LTE antennas, configurable digital, analogue inputs and digital outputs, negative input, impulse inputs. It is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on.
